YM2612インストゥルメントエディタ - セガジェネシス - メガドライブのROM
(YM2612 Instrument Editor - Sega Genesis -Megadrive ROM)
----------------------------------------------------------------------------------------------------------------------------------
Tested on Emulators and Hardware.
Free download at http://www.alyjameslab.com/download.html
If you want to save your created sounds or use them into YM2612 emulators
synths or trackers (FMDrive VST, Deflemask, VGMM), you can use an emulator like
Regen or Gens to dump the channel as a .tfi file which can be loaded into capable VST or Trackers.
SRAM support or Flashcard support could be added in the future to directly dump to SD card from the hardware.
This brand new ROM was created and coded by
Matt "MrD", creator of Gravity Beam: Master Gaiden SMS Homebrew game
http://www.smspower.org/Homebrew/Gravit … Gaiden-SMS
and enhanced by Aly James, creator of FMDrive 2612 Vsti & SPSg Vsti
http://www.alyjameslab.com

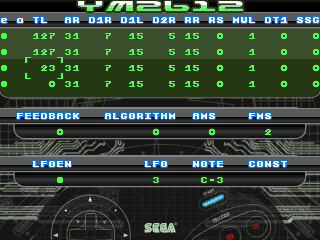

YM2612 Instrument editor lets you control the Sega Genesis FM sound chip in real time,
access the main parameters of the Channel 1 and select which note to play.
If you want to save your created sounds or use them into YM2612 emulators
synths or trackers (FMDrive VST, Deflemask, VGMM), you can use an emulator like
Regen or Gens to dump the channel as a .tfi file which can be loaded into capable VST or Trackers.
It is also a useful tool for YM2612 musicians or Genesis developers to quickly test a sound
directly on the hardware in a friendly way.
Usage
----------------------------------------------------------------------------------------------------------------------------------
A and B increase or decrease the values
C does a note on
Start does a note off
e= will enable or disable an operator
CONST = If it's enabled, it reloads the FM registers every frame, so you can trigger the note and then
alter the options in real-time.
If it's disabled, you trigger the note once and the registers stay the same until you trigger the note again.
If you don't know how to program the YM2612 FM synthesizer chip
The freely download-able FMDrive VST manual will helps you to understand this powerful sound chip.
http://www.alyjameslab.com/wa_files/FMD … MANUAL.pdf
